OpenSEES自动前后处理程序AutoOS【OpenSEES Automatic Pre- and Post-Processing Program AutoOS】

本文为OPENSEES自动前后处理程序AutoOS的简单介绍，编写一个可以批量添加ETABS墙肢编号的小插件。这是本码第34篇原创，原创不易，点赞在看加关注。

1 OpenSees简介及学习

OpenSees 是开放的地震工程仿真系统，是一套面向对象的开源软件。OpenSees支持各种有限元串行与并行计算，可以被用于模拟结构和岩土系统在地震或其他灾害中响应。 OpenSees 主要用 C++ 编写，并使用Fortran 和 C 编写的多个线性方程求解、材料和单元子程序。OpenSees 开发的主要目的是通过以下方式改进地震工程领域的建模和计算模拟：

开源的开发方式。从OpenSees问世以来，大家添加的材料库和单元库不计其数，想要全部掌握是不可能的，幸好只需掌握其中常用的就行。OpenSees的开源代码库在github上的链接地址为：OpenSees的github链接。有C++基础的朋友可以读一读，OS的依然还在不断维持更新和整理，目前已经3.4版本正在更新中，而3.3版本更为稳定。
可广泛用于有限元理论及地震工程仿真培训教育。通过OpenSees源码来进行有限元编程以及进行地震工程相关专业的研究或教学，是非常有趣的。OpenSees广受科研工作者的亲睐，目前有不少研究论文都是基于OpenSees撰写的。
拥有更积极活跃的讨论社区。OpenSees社区网站链接，有OpenSees相关问题在上面。

表1 目前市面上的OpenSees中文书籍

名称	作者	内容侧重点
结构弹塑性分析程序OpenSees原理与实例（第二版)	陈学伟 \| 林哲	实例多，各个方面均有，可以在陈博博客上下载，
OpenSees实用教程	古泉 \| 黄素蓉	实例少，但有介绍如何添加单元和材料等，代码实例仓库链接
哈工大基于OpenSees的钢筋混凝土结构非线性分析	王震宇\| 王代玉	侧重钢筋混凝土原理及讲解，实例偏少，代码所占篇幅较大。

当然，学习OpenSees的最好方法是看英文帮助文档，最好去它的OpenSees官网看OpenSeesWiki ，用搜索功能可以搜索到所需要的信息，其他不需要掌握的可以不去学。也有同济大学的董翰林博士总结了OpenSees的所有学习资料，在此不再赘述，移步Awesome-OpenSees-翰林苑。

俗话说，前人种树，后人乘凉。我们不用再去撸OpenSees源代码，但是作为结构软件通，有必要了解下OpenSees及tcl脚本语言，学习下如何使用OpenSees进行自己关注的一系列地震工程或岩土工程相关问题的研究或求解。

跟我工作中平时使用的YJK和ETABS不同，OpenSees编译完成后只有一个exe，然后进行命令行调用tcl脚本进行计算，与我们的使用习惯大不相同。

表2 OpenSees前后处理程序汇总

名称	作者	下载链接
ETO	陈学伟	ETO程序链接免费下载使用
OSLite	陈维晃	OSLite程序链接免费下载使用
STKO	asdeasoft软件公司	STKO OpenSees Trial 学生免费，试用免费，其他付费
vfo	Anurag Upadhyay	vfo: Visualization For OpenSees免费开源，openseespy官网推荐
OpenSees Navigator	Tony Yang	OpenSees Navigator官网链接
PBSD	吴梓楠	基于AutoCAD,可转YJK模型，仅公开了转换框架结构接口

还有其他比较多的前后处理及可视化工具，在此就不一一列出了。当然要用以上的前后处理或多或少都不是那么趁手，而我平时的模型都是YJK模型，而我常用的Abaqus及Perform3D又各种黑箱子，因此采用OpenSees再复核下对我而言显得非常有需要，最主要的还是好玩。

2 自动前后处理程序AutoOS

基于以上的学习和摸索，最终决定自己开发一款OpenSees前后处理程序，期望实现如下目的：

接口：直接转换YJK或其他常用软件的模型至OpenSees模型。
可视化：显示三维模型，常规结构构件或单元的显示，支持各种三维视图。
后处理：常用指标及结果，与常用软件的对比和校核模块。
可拓展：把后续更多好玩创新的想法加入其中。

2.1 例题模型

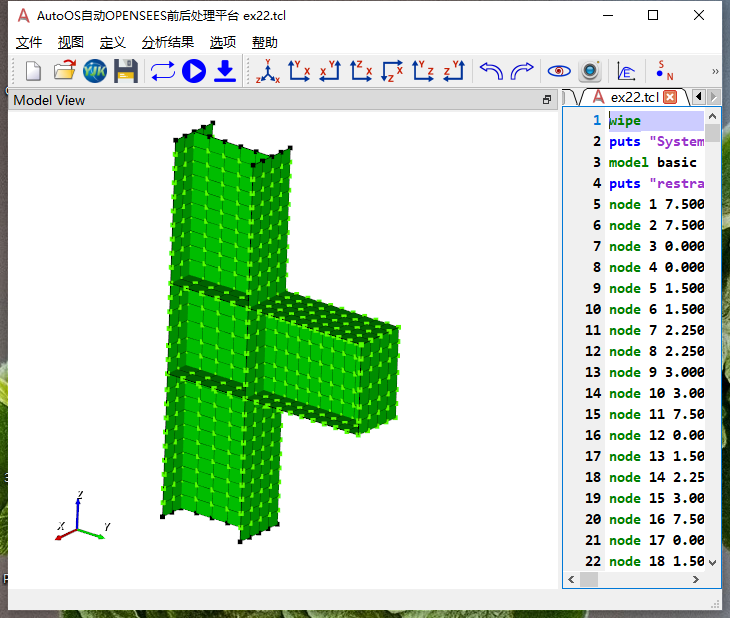

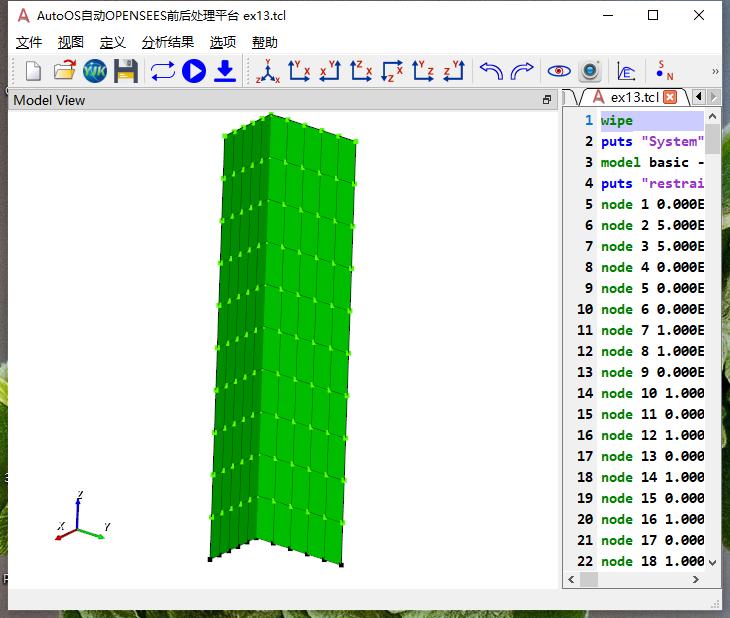

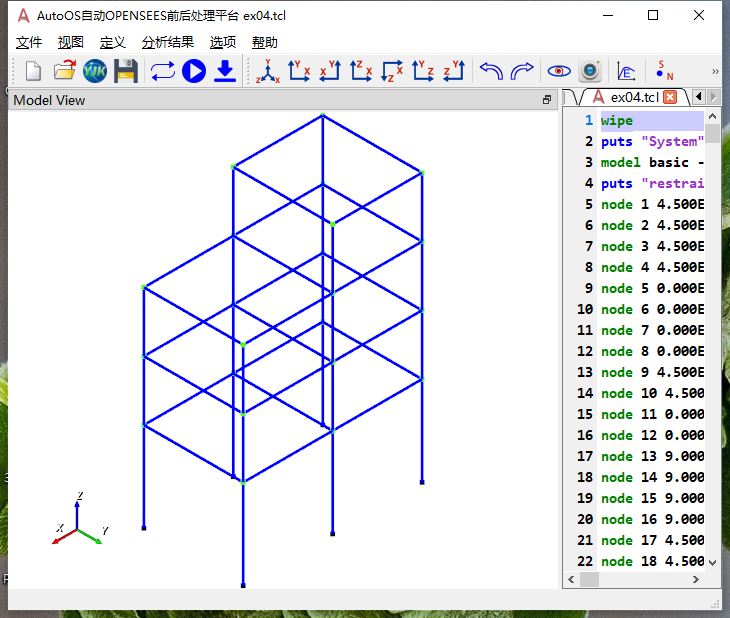

采用陈博和厦门大学古泉老师以及清华大学陆新征老师分享的实例，显示结果如下，AutoOS可以支持常见模型的显示。

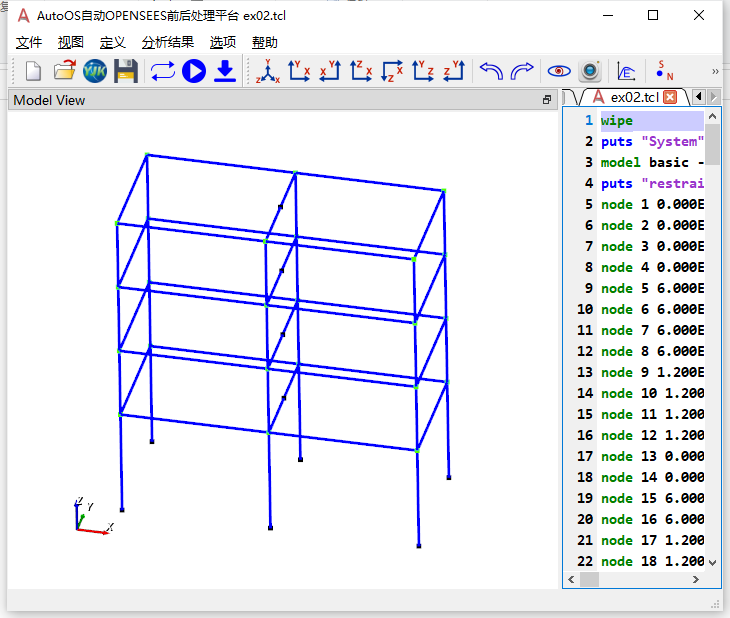

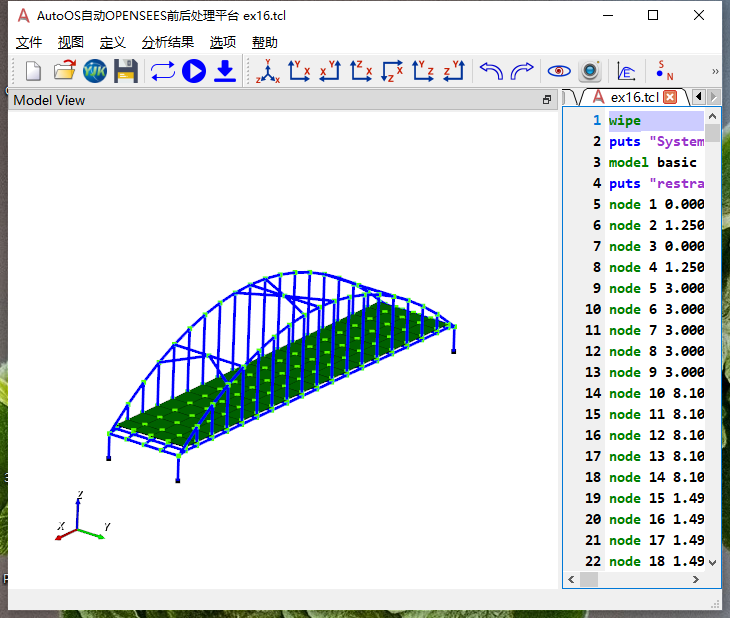

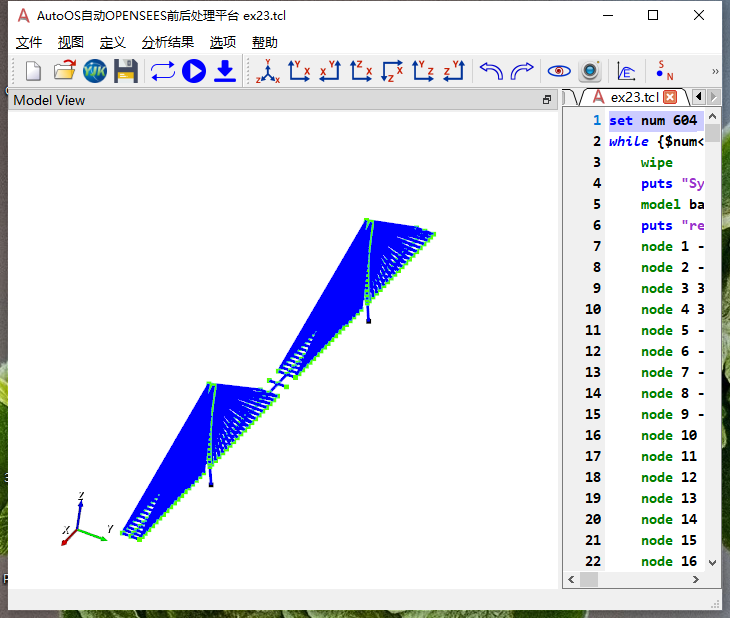

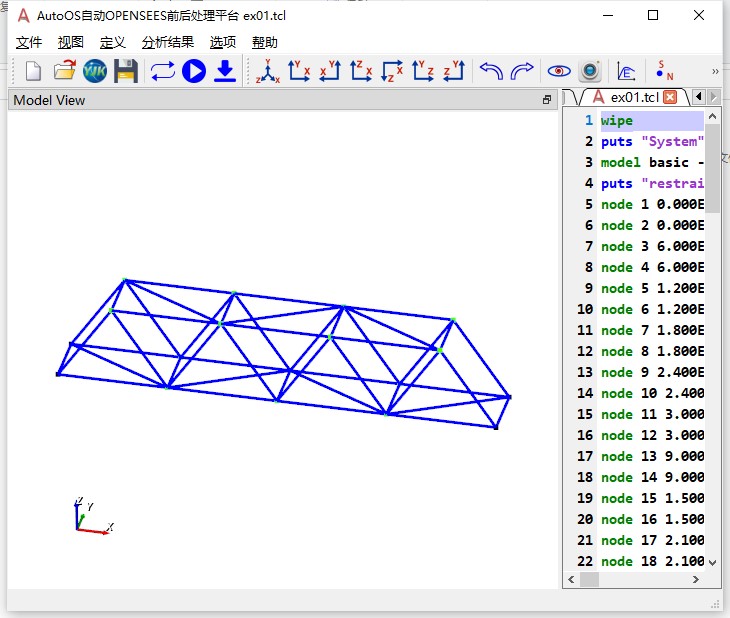

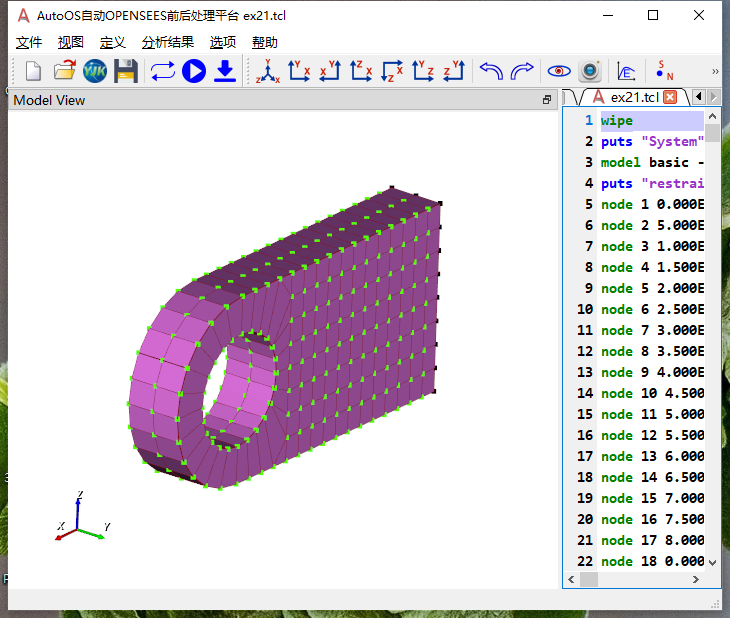

例题1 www.dinochen.com	例题2 www.dinochen.com
例题3 www.dinochen.com	例题4 www.dinochen.com
例题5 www.dinochen.com	例题6 www.dinochen.com

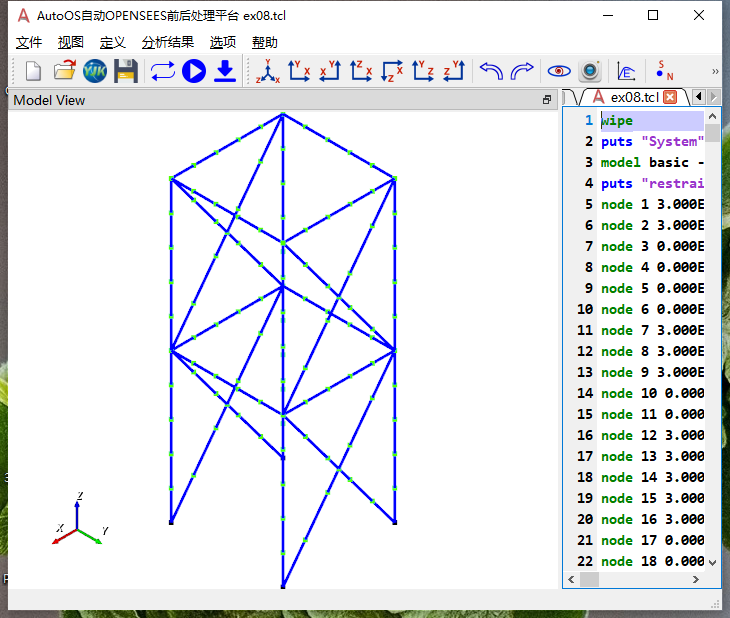

例题7 www.dinochen.com	例题8 www.dinochen.com

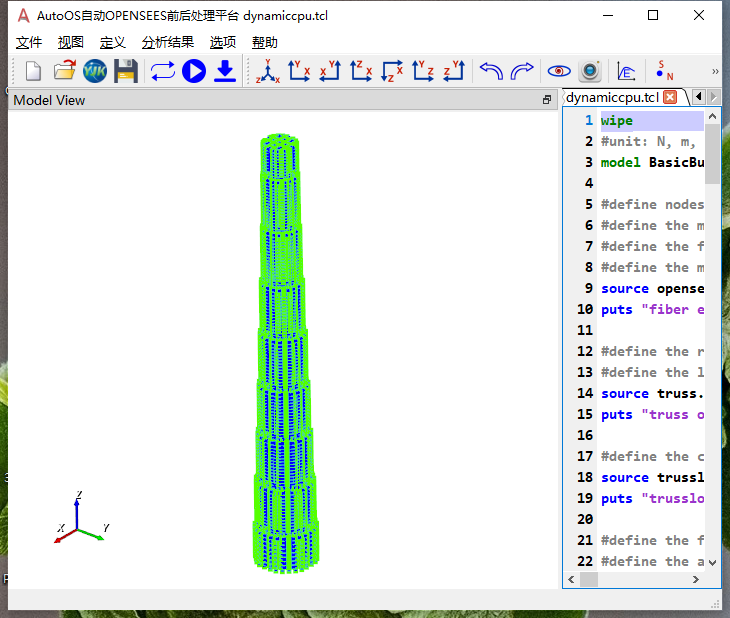

例题9 www.dinochen.com	例题10 www.luxinzheng.net

2.2 工程模型

采用自编YJK转OPENSEES转换我司几个项目的工程实例如下:

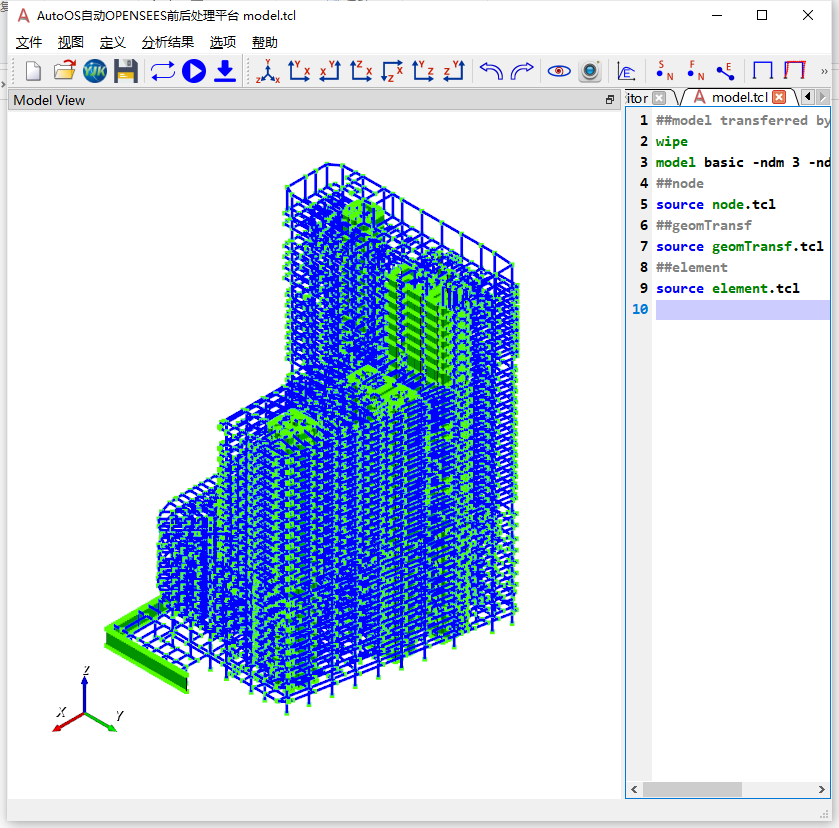

工程1 框架-核心筒

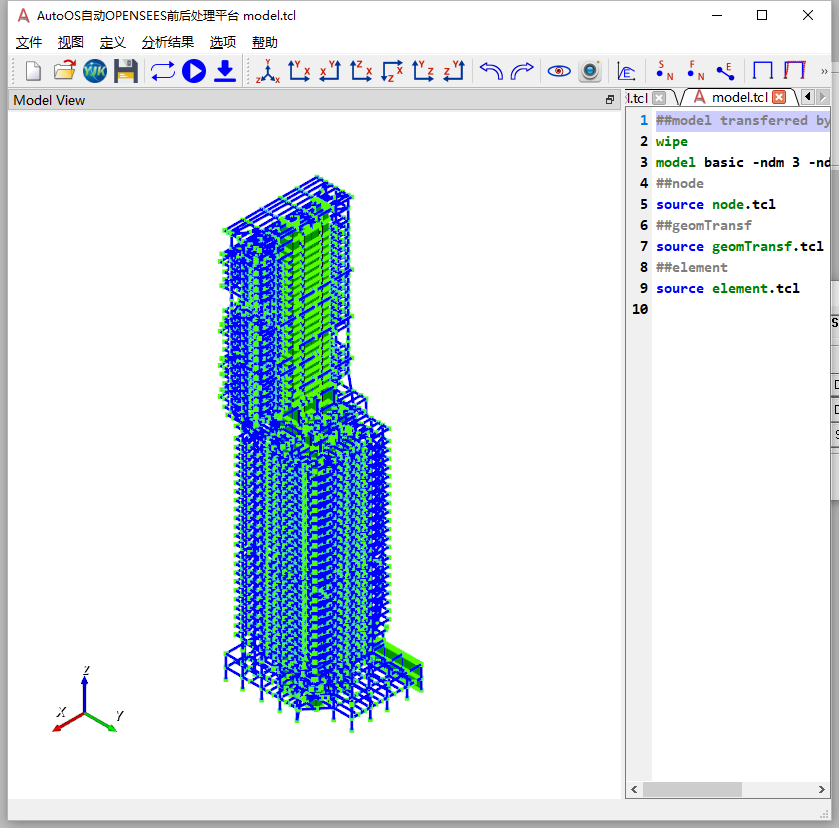

工程2 框架-剪力墙

2.3 后续工作

前面接口转换和图形显示模块已经完成，后续继续进行后处理模块的编写。

因兴趣而坚持，美好的事情会历久弥新。

【参考文献】

[1] 陈学伟博客

[2] OPENSEES官网

[3] 陆新征博客

[4] 翰林苑|董翰林的个人网站)

[5] 陈维晃博客

[6]静水流深博客

往期文章

#参数化建模#

#详解Grasshopper中的C#脚本电池详解[附源码]

#如何开发Grasshopper插件[附源码]

#Rhino.Python脚本建模学习笔记【1】

#结构编程#

#超限报告自动生成平台2022版本之小震模块演示

#一起玩玩结构设计软件API

#ETABS墙肢编号插件及演示

#Abaqus模拟剪力墙滞回曲线【python源码】

#有关选波的若干技术吐槽

#自动选波程序AutoWave更新

#PKPM5.转ETABS201X接口程序[Free]

#YJK模型转ETABS201X自编接口介绍

#结构软件关于梁柱刚域的考虑

#AutoWave自动选波及人工波生成工具操作演示

#结构分析设计有哪些工作可以让Python干？

#一名结构工程师学习Python的心路历程

#Python从YJK数据库读取荷载工况信息

#建筑大师#

#[建筑大师]（1）貝聿銘的光影傳奇

#[建筑大师]（2）勒·柯布西耶的现代主义

#[建筑大师]（3）奥斯卡梅尼耶的建筑曲线与女人

#[建筑大师](4)扎哈·哈迪德用曲线演绎传奇

#结构大师#

#高层建筑设计-以结构为建筑[上] bySOM大神马克*夏凯星

#高层建筑设计-以结构为建筑[中] bySOM大神马克*夏凯星

#高层建筑设计-以结构为建筑[下] bySOM大神马克*夏凯星

#抗震性能设计大神Graham.H.Powell讲座第1节-上

#抗震性能设计大神Graham.H.Powell讲座第1节-下

#超高层建筑抗震性能设计by伯克利教授Jack Moehle

#结构设计#

#《深圳高规》非官方讨论一

#《深圳高规》非官方讨论二

**English***

This is the 34th original article in this code series. Original work is not easy—please like, bookmark, and follow!

1. OpenSees Introduction and Learning

OpenSees (Open System for Earthquake Engineering Simulation) is an open, object-oriented, open-source software framework. OpenSees supports a wide range of serial and parallel finite element computations, and can be used to simulate the response of structural and geotechnical systems under earthquakes or other disasters. OpenSees is mainly written in C++, and also utilizes several linear equation solvers, material, and element subroutines written in Fortran and C. The main purpose of OpenSees development is to improve modeling and computational simulation in the field of earthquake engineering in the following ways:

Open-source development model. Since the emergence of OpenSees, countless material and element libraries have been contributed. It’s impossible to master all of them, but fortunately, you only need to focus on the commonly used ones. The OpenSees source code repository is available on GitHub: OpenSees GitHub Link. If you have a C++ background, it’s worth a read. The OS codebase is still being maintained and updated; version 3.4 is in development, while 3.3 is more stable.
Widely used for finite element theory and earthquake engineering simulation education and training. Exploring finite element programming and research or teaching in earthquake engineering via OpenSees source code is very rewarding. OpenSees is favored by many researchers, and many research papers are based on OpenSees.
A highly active and vibrant discussion community. OpenSees Community Website hosts a wide range of OpenSees-related discussions.

Table 1: Currently Available OpenSees Chinese Books

Title	Author	Content Focus
Principles and Examples of Structural Elastoplastic Analysis Program OpenSees (2nd Edition)	Xuewei Chen \| Zhe Lin	Lots of examples and wide coverage; downloadable from Chen Bo’s Blog
OpenSees Practical Tutorial	Quan Gu \| Surong Huang	Fewer examples, but introduces how to add elements and materials, Code Example Repo
HIT Nonlinear Analysis of Reinforced Concrete Structures Based on OpenSees	Zhenyu Wang \| Daiyu Wang	Focuses on RC principles and explanation; fewer examples, large portion of code.

The best way to learn OpenSees is to read the English documentation, preferably the official OpenSees Wiki, where you can search for what you need. You can skip the rest. Dr. Hanlin Dong from Tongji University has summarized all OpenSees learning resources, see Awesome-OpenSees-Hanlin Academy.

“As the saying goes, those who come before plant the trees, those who come after enjoy the shade.”

We don’t need to delve into the OpenSees source code, but as structural software experts, it’s worthwhile to get to know OpenSees and the Tcl scripting language, and learn how to use OpenSees for research or solving a series of earthquake or geotechnical engineering problems of interest.

Unlike the YJK and ETABS I use at work, OpenSees compiles to a single executable, and calculations are run by calling Tcl scripts from the command line, which is quite different from our typical workflow.

Table 2: Summary of OpenSees Pre- and Post-Processing Programs

Name	Author	Download Link
ETO	Xuewei Chen	ETO Program Link Free to use
OSLite	Weihuang Chen	OSLite Program Link Free to use
STKO	asdeasoft Software	STKO OpenSees Trial Free for students/trial, others paid
vfo	Anurag Upadhyay	vfo: Visualization For OpenSees Free open source, recommended by OpenSeesPy
OpenSees Navigator	Tony Yang	OpenSees Navigator Official link
PBSD	Zinan Wu	Based on AutoCAD, can convert YJK models, only the frame structure interface is public

There are many other pre/post-processing and visualization tools, which won’t be listed here. None of the above tools is perfect in practice, and my models are mostly YJK models. Also, my commonly used Abaqus and Perform3D are black-boxed, so using OpenSees for cross-checking is both necessary and—most importantly—fun.

2. Automatic Pre- and Post-Processing Program AutoOS

Based on the above learning and exploration, I ultimately decided to develop my own OpenSees pre- and post-processing program, hoping to achieve the following:

Interface: Direct conversion from YJK or other common software models to OpenSees models.
Visualization: 3D model display, conventional structural member/unit display, support for various 3D views.
Post-processing: Common indicators and results, with comparison and verification modules against standard software.
Extensible: Incorporate more fun and innovative features in the future.

2.1 Example Models

Using examples shared by Chen Bo, Professor Quan Gu of Xiamen University, and Professor Xinzheng Lu of Tsinghua University, AutoOS can display common models as shown below:

Example 1 www.dinochen.com	Example 2 www.dinochen.com
Example 3 www.dinochen.com	Example 4 www.dinochen.com
Example 5 www.dinochen.com	Example 6 www.dinochen.com
Example 7 www.dinochen.com	Example 8 www.dinochen.com
Example 9 www.dinochen.com	Example 10 www.luxinzheng.net
